1022 Tractor Specs

Download Manual

1022 Engine

Engine: 3 Cylinder, Water-Cooled, Diesel
Engine HP @ RPM: 21.5
Displacement (in.): 60.6
Number Of Cylinders: 3
Fuel Tank (gal.): 6.6

1022 Drivetrain

Transmission: HST
Number Of Speeds: 2 Range
Clutch: Dry Single Plate
Brakes: Wet, Multi-Disc

1022 Hydraulics

Type: Power Assisted Hydro-Static
Total Hydraulic Flow (Power Steering + Implement): 6.3 (2.1+4.2) / 23.8 (8+15.8)
3-Point Hitch: Cat 1
Rear Remote Valve: Optional (Up To 1)
3-Point Hitch Lift Capacity @ 24" Behind Lift Point @ Ball Ends (lbs.): 499

1022 Dimensions

Overall Length: 94.2"
Overall Width: 44.5"
Overall Height: 86.6"
Wheelbase: 53.1"
Minimum Ground Clearance: 8.3"
Weight: 1,433 lbs.

1022 PTO

Type: Independent
Rear (Mid) PTO Speed: 540
PTO HP: 15.4

1022 Electrical

Battery: 12 V, 500 CCA
Alternator: 12 V, 40 A

1022 Wheels & Tires

IND (Front): 18X8.50-10
IND (Rear): 26X12-12

1022 Loader - Model BBL100

Standard Bucket Size (in.): 48
Maximum Lift Height (in.): 72.7
Dig Depth (in.): 4.0
Lift Capacity To Full Height At Pivot Pin (lbs.): 617
Breakout Force (lbs.): 1,253
Shipping Weight (lbs.): 438

1022 Backhoe - Model BBH100

Standard Bucket Size (in.)

Type

Subframe-Mounted, Quick Attach

Maximum Dig Depth (in.)

Dig Force Bucket (lbs.)

1,975

Shipping Weight (lbs.)

747

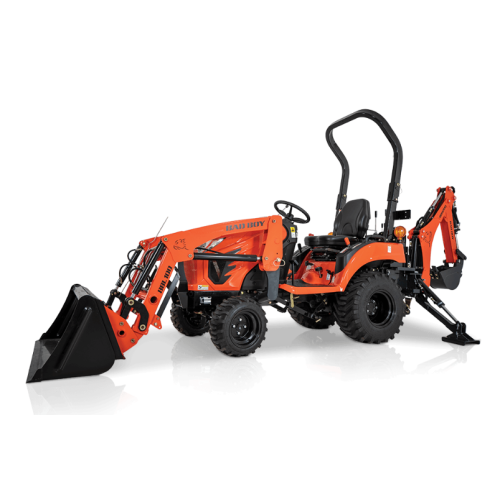

Bad Boy 1022 Tractor – Power Meets Performance

Introducing the Bad Boy 1022 Tractor, a robust and versatile compact tractor designed to handle a wide range of agricultural tasks with ease. Built for both professional farmers and homeowners with land to maintain, the Bad Boy 1022 combines power, durability, and user-friendly features to help you tackle any job around your property efficiently.

Key Features

Powerful Engine: The Bad Boy 1022 is equipped with a reliable engine that delivers robust horsepower, providing the strength needed for demanding tasks. This compact tractor is designed to handle various attachments and implements, making it an excellent choice for everything from landscaping and gardening to heavier-duty farming applications.

Compact and Maneuverable Design: Designed with a compact frame, the Bad Boy 1022 is perfect for navigating tight spaces and working in confined areas. Its small footprint allows you to work in orchards, gardens, and on landscaping projects without sacrificing power or performance.

Versatile Attachments: One of the standout features of the Bad Boy 1022 is its compatibility with a wide range of attachments, including front-end loaders, backhoes, and various implements. This versatility makes it easy to customize your tractor to meet your specific needs, whether you’re digging, hauling, or plowing.

User-Friendly Operation: The Bad Boy 1022 is designed with the operator in mind. Its intuitive controls make it easy to operate, allowing both experienced users and beginners to feel comfortable handling the tractor. The ergonomic seat and layout ensure that you can work for extended periods without discomfort.

Four-Wheel Drive (4WD): Equipped with a four-wheel drive system, the Bad Boy 1022 provides enhanced traction and stability on uneven terrain. This feature ensures that you can tackle challenging conditions, from muddy fields to steep slopes, with confidence.

Durability and Reliability

Built to withstand the rigors of agricultural work, the Bad Boy 1022 Tractor features a rugged chassis and high-quality components designed for long-lasting performance. The tractor’s durable construction ensures it can handle the wear and tear of daily use while maintaining its functionality and efficiency.

Safety Features

Safety is paramount when operating machinery, and the Bad Boy 1022 comes equipped with various safety features designed to protect the operator. The tractor includes:

Roll-Over Protective Structure (ROPS): Provides additional safety for the operator in case of accidental tipping. Safety Switches: Integrated safety switches prevent operation if the operator is not in the correct position, enhancing user safety during operation.

Conclusion

The Bad Boy 1022 Tractor is a powerful and versatile machine that is perfect for a wide range of agricultural and landscaping tasks. With its compact design, robust engine, and compatibility with numerous attachments, this tractor is engineered to provide exceptional performance and reliability. Whether you’re maintaining a small farm, managing a large property, or tackling landscaping projects, the Bad Boy 1022 is your dependable partner in achieving your goals. Experience the blend of power and performance that the Bad Boy 1022 Tractor offers, and elevate your productivity today!
